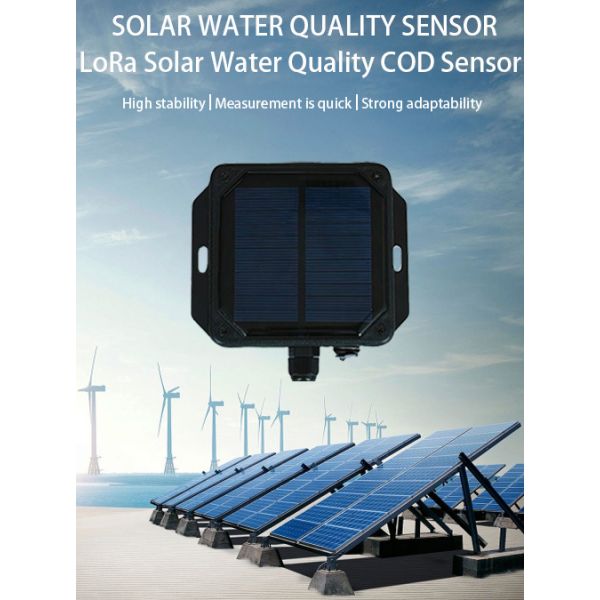

Solar-Powered LoRaWAN Online COD Sensor

Product Introduction:

• The solar LoRaWAN water quality COD sensor is an integrated water quality COD monitoring device designed specifically for outdoor environments, completely freeing itself from the constraints of power supply and achieving true unmanned and long-term operation. The product adopts a self powered solution of "solar energy+large capacity lithium battery", which can last for more than 3 years under typical usage conditions. Combined with low-power LoRaWAN wireless transmission, it significantly reduces deployment and maintenance costs, especially suitable for scenarios such as pipeline monitoring, river sections, aquaculture, and rural sewage treatment.
• In terms of core measurement capabilities, LW106S is based on the principle of ultraviolet absorption method, which can quickly detect chemical oxygen demand (COD) without the need for chemical reagents. It provides three adjustable ranges of 0-200 mg/L, 0-500 mg/L, and 0-1500 mg/L, meeting different monitoring needs from surface water to industrial discharge outlets. The built-in turbidity measurement system can compensate for the interference of turbidity on COD detection in real time, combined with automatic temperature compensation and self-cleaning devices, effectively reducing data drift caused by biological adhesion and environmental changes, ensuring stable and reliable long-term monitoring data.

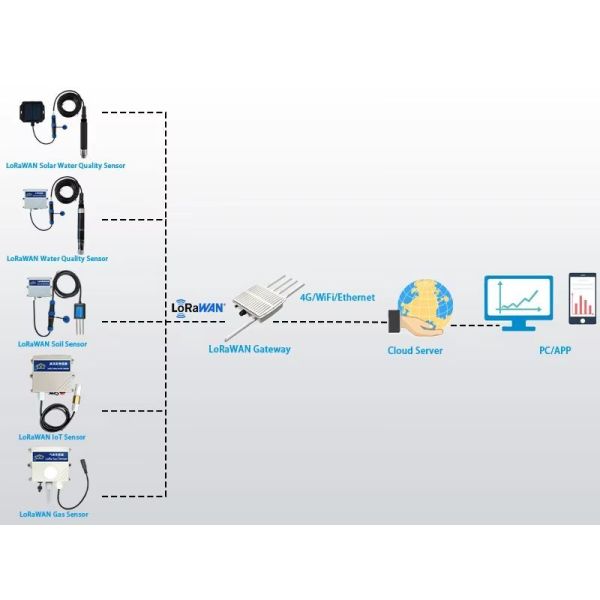

• In terms of data transmission and operation, the equipment supports standard LoRaWAN protocol (Class A/C switchable) and LoRa TDMA networking. The reporting cycle can be remotely configured, and the serial port configuration tool and downlink command interface are open for quick calibration and debugging on site. The whole machine has a compact structure and flexible installation, forming a complete closed loop from power supply, sensing to communication, providing users with an online water quality monitoring experience of "ready to use, low power consumption, and high reliability".

Solar Powered COD Sensor Specification:

Packaging:

Single gross weight: 1.200 KG

Single package size: 37x26x5 cm

Product Display:

Quality assurance:

1. Each production process is inspected by dedicated personnel to strictly ensure product quality.
2. Professional engineers are fully responsible for quality inspection and control throughout the process.
3. All products have passed authoritative certifications such as CE, ROHS and metrology.

Application:

• Monitoring of river and lake cross-sections: Long term deployment in areas without electricity supply to monitor real-time changes in water quality.
• Aquaculture: Monitor organic pollution, assist in regulating water quality, and reduce aquaculture risks.
• Rural sewage treatment: decentralized station online monitoring to support operation and maintenance management.
• Rainwater pipe network and outlet: track overflow pollution and warn of abnormal discharge.

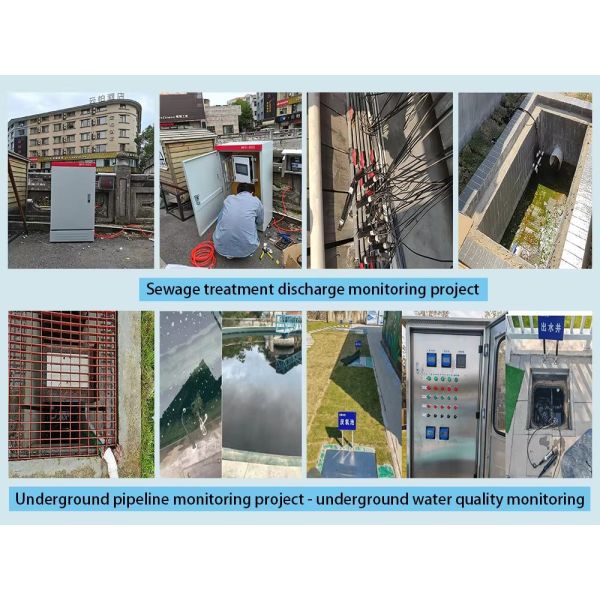

Customer on-site examples:

FAQ:

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.

Why choose us:

• Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
• Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
• Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
• Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
• Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
